Automatically detects 12V or 24V DC system voltages

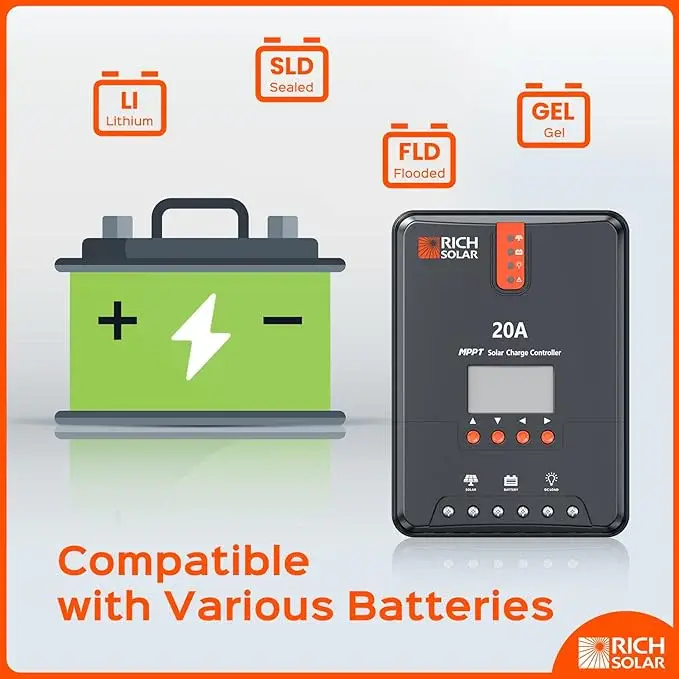

Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%
Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
Features diverse load control; also capable of charging over-discharged lithium batteries

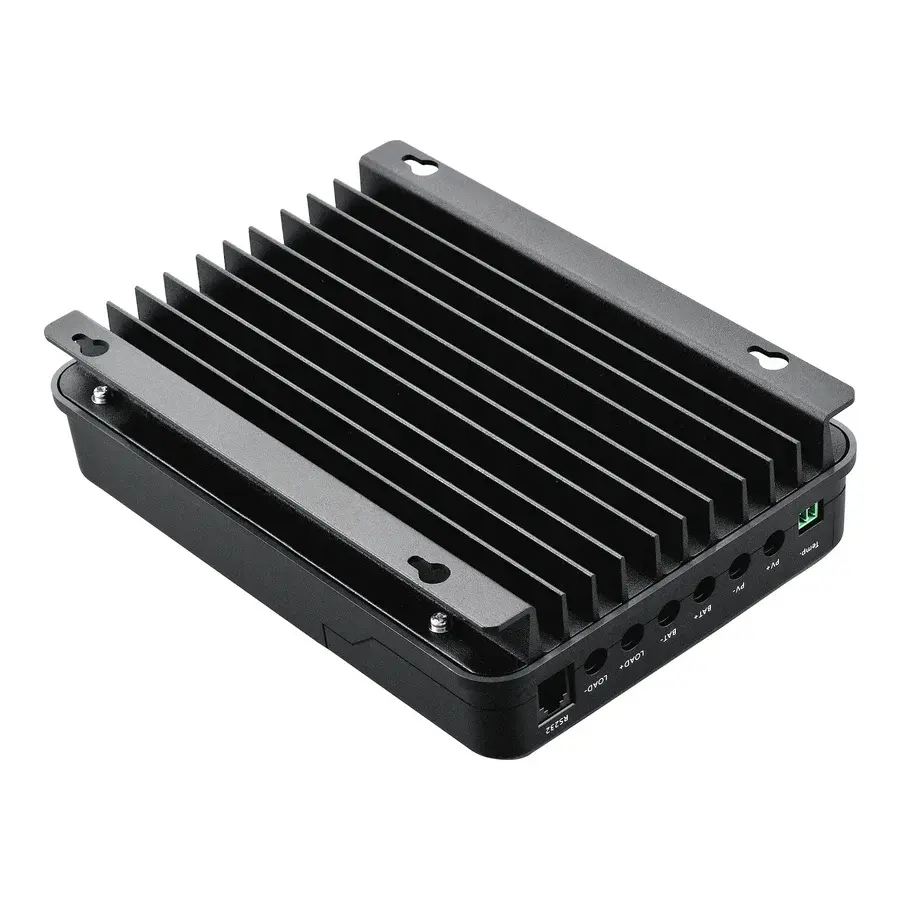

Die-cast aluminum design allows for efficient heat dissipation
RS232 port to communicate with BT-1 Bluetooth module.

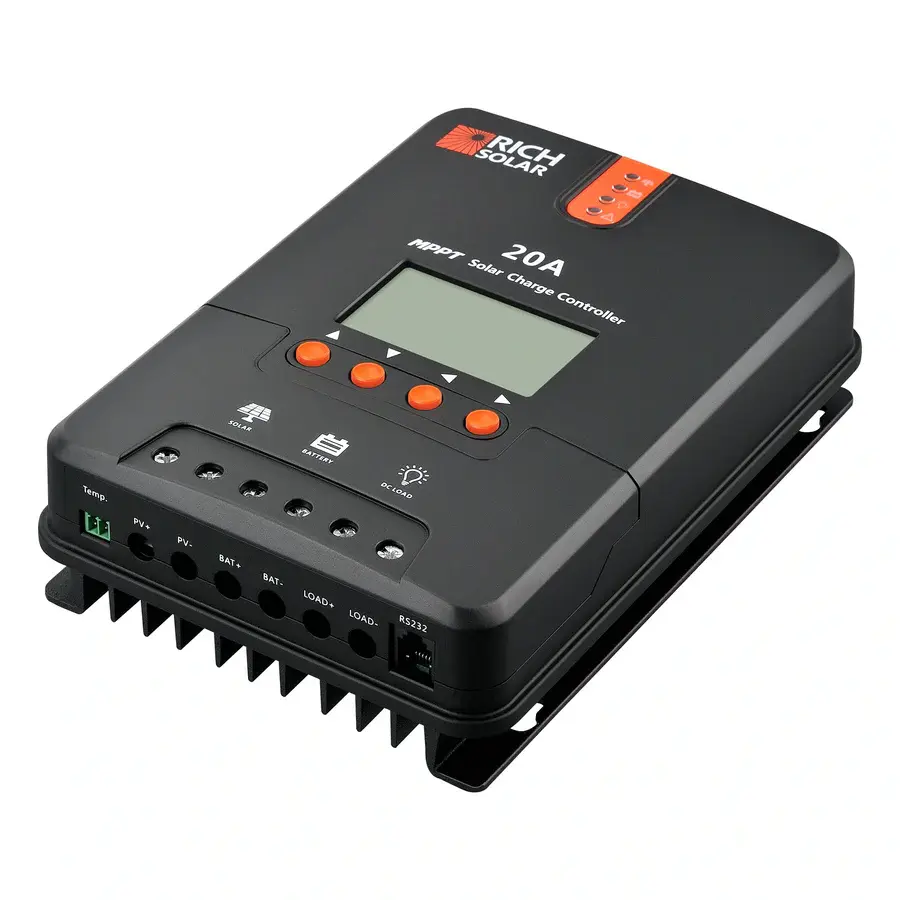

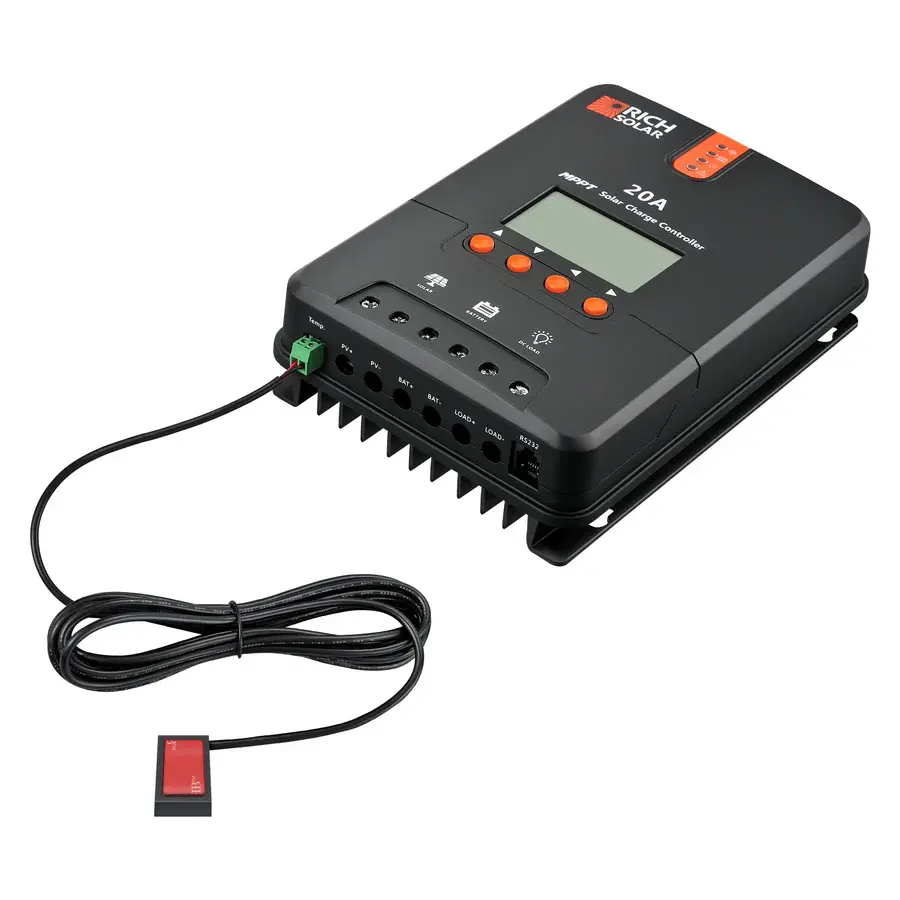

Rich Solar 20 Amp MPPT Solar Charge Controller

Name: Rich Solar 20 Amp MPPT Solar Charge Controller
Brand: Rich Solar
SKU: RS-MPPT20

SKU: RS-MPPT20

$82.99

$71.99

Quantity

SKU	RS-MPPT20
Nominal System Voltage	12V/24V Auto Recognition
Rated Battery Current	20A
Rated Load Current	20A
Max. PV Input Short Current	25A
Max. Battery Voltage	32V
Max Solar Input Voltage	100 VDC
Mounting Oval	0.30 x 0.18 in
Net Weight	3.08 lb
Discharge Circuit Voltage Drop	≤ 0.15V
Overall Dimension	8.27 in x 5.94 in x 2.34 in
